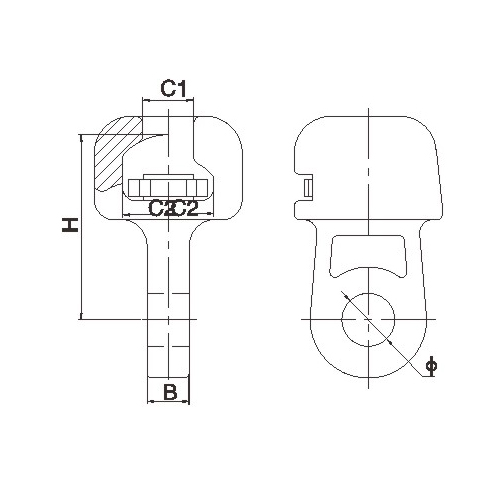

W Socket-Clevis Eye Standard Link Fittings
State Network Model |
85 Standard Model |
Connection Mark |
Main Dimensions |
Nominal Failure Load |
Weight |
|||||
B |
C1 |
C2 |
Φ |
H |
||||||
W-0770 |
W-7A |
16 |
16 |
19.2 |
34.5 |
20 |
70 |
70 |
0.69 |
|
W-07115 |
W-7B |
16 |
16 |
19.2 |
34.5 |
20 |
115 |
70 |
0.86 |
|
W-1085 |
W1-10 |
16 |
18 |
19.2 |
34.5 |
20 |
85 |
100 |
0.90 |
|
|
W1-12 |
16 |
20 |
19.2 |
34.5 |
24 |
90 |
120 |
1.30 |
|
W-1290 |
|
20 |
20 |
23.0 |
42.5 |
24 |
90 |
120 |
1.40 |
|
W-1695 |
|
20 |
20 |
23.0 |
42.5 |
24 |
90 |
120 |
1.40 |
|
|
W-30 |
24 |
32 |
27.5 |
51.0 |
39 |
110 |
300 |
3.50 |
|
W-32110 |
|
24 |
28 |
27.5 |
51.0 |
33 |
110 |
320 |
3.50 |

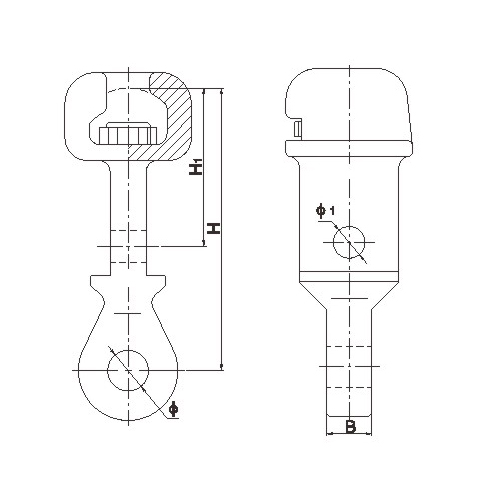

Type |
Connection Mark |
Main Dimensions |
Nominal Failure Load |
Weight |
|||||
B |
Φ1 |
Φ |
H1 |
H |
|||||
W1-7K |
16 |
20 |
14 |
18 |
70 |
120 |
70 |
1.0 |
|
W1-12K |
16 |
22 |
14 |
24 |
70 |
120 |
120 |
1.3 |

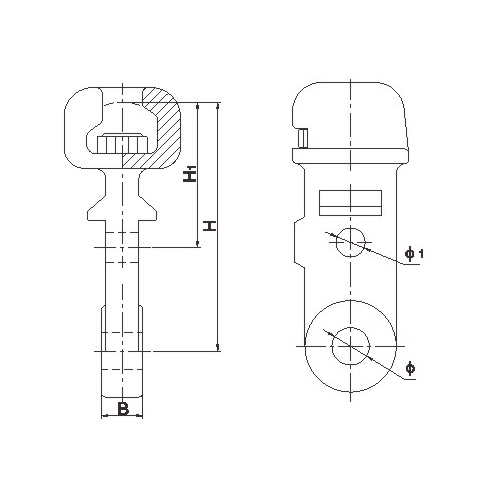

Type |
Connection Mark |
Main Dimensions |
Nominal Failure Load |
Weight |
|||||
B |
Φ1 |
Φ |
H1 |
H |
|||||
W1-7R |
16 |
18 |
14 |
18 |
65 |
140 |
70 |
1.0 |
|
W1-12R |
16 |
22 |
14 |
24 |
70 |
120 |
120 |
1.3 |

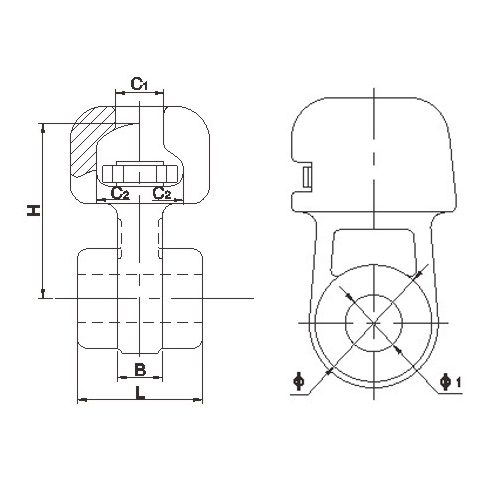

Type |
Connection Mark |
Main Dimensions |
Nominal Failure Load |
Weight |
|||||||
B |
C1 |
C2 |
Φ1 |
Φ |
H |
L |
|||||
WG-0724 |
16 |
16 |
19.2 |
34.5 |
20 |
40 |
70 |
24 |
70 |
0.80 |
|
WG-0732 |
16 |
16 |
19.2 |
34.5 |
20 |
40 |
70 |
32 |
70 |
0.85 |
|
WG-0745 |
16 |
16 |
19.2 |
34.5 |
20 |
40 |
70 |
45 |
70 |
0.87 |
|
WG-1036 |
16 |
16 |
19.2 |
34.5 |
21.5 |
40 |
85 |
36 |
100 |
0.90 |
|
WG-1045 |
16 |
16 |
19.2 |
34.5 |
21.5 |
40 |
85 |
45 |
100 |
0.93 |
|
WG-1050 |
16 |
16 |
19.2 |
34.5 |
21.5 |
40 |
85 |
50 |
100 |
0.95 |

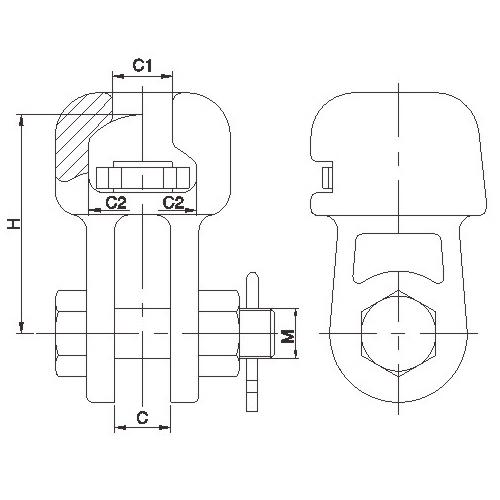

State Network Model |
85 Standard Model |
Connection Mark |
Main Dimensions |
Nominal Failure Load |
|||||
C |
C1 |
C2 |
M |
H |
|||||
WS-0770 |
WS-7 |
16 |
18 |
19.2 |
34.5 |
16 |
70 |
70 |
|
WS-1085 |
WS-10 |
16 |
20 |
19.2 |
34.5 |
18 |
85 |
100 |
|
WS-1290 |
|
16 |
20 |
19.2 |
34.5 |
22 |
90 |
120 |
|
|
WS-12 |
16 |
24 |
19.2 |
34.5 |
22 |
85 |
120 |
|
WS-1695 |
WS-16 |
20 |
22 |
23 |
42.5 |
24 |
95 |
160 |
|
|
WS-20 |
24 |
30 |
27.5 |
51 |
27 |
100 |
200 |
|
WS-21100 |
|
20 |
24 |
23 |
42.5 |
24 |
100 |
210 |
|
WS-25100 |
|
24 |
28 |
27.5 |
51 |
27 |
100 |
250 |
|
|
WS-30 |
24 |
36 |
27.5 |
51 |
36 |
110 |
300 |
|
WS-32110 |
|
24 |
32 |
27.5 |
51 |
30 |
110 |
320 |
|
WS-42110 |
|
28 |
36 |
32 |
59 |
36 |
120 |
420 |

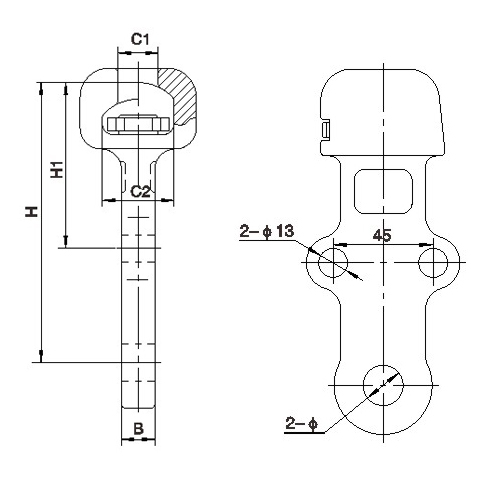

State Network Model |
Main Dimensions |
Nominal Failure Load |
||||||
B |
C1 |
C2 |
H |
H1 |
Φ |
|||
WJ-07135 |
16 |
19.2 |
34.5 |
135 |
80 |
18 |
70 |
|
WJ-10135 |
16 |
19.2 |
34.5 |
135 |
80 |
20 |
100 |
|
WJ-12145 |
16 |
19.2 |
34.5 |
145 |
80 |
24 |
120 |
|
WJ-16170 |
16 |
23 |
42.5 |
170 |
100 |
26 |
160 |

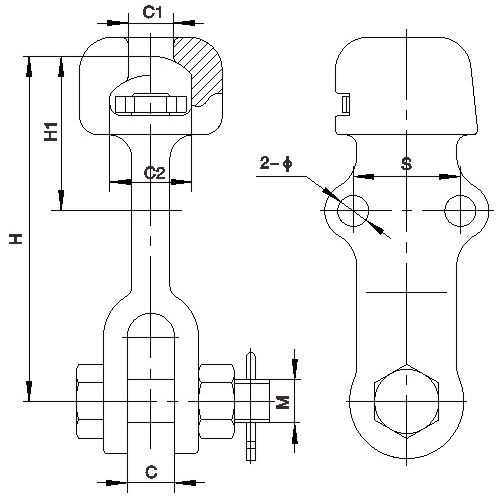

State Network Model |
Main Dimensions |
Nominal Failure Load |
||||||||
C |
C1 |
C2 |
H |
H1 |
M |
Φ |
S |
|||
WSJ-07145 |
20 |
19.2 |
34.5 |
145 |
65 |
16 |
13 |
45 |
70 |
|
WSJ-10145 |
20 |
19.2 |
34.5 |
145 |
65 |
18 |
13 |
45 |
100 |
|
WSJ-12160 |
20 |
19.2 |
34.5 |
160 |
70 |
22 |
13 |
45 |
120 |
|
WSJ-16170 |
22 |
23 |
42.5 |
170 |
70 |
24 |
13 |
45 |
160 |
|
WSJ-16195 |
22 |
23 |
42.5 |
195 |
80 |
24 |
18 |
80 |
160 |
|
WSJ-21195 |
24 |
23 |
42.5 |
195 |
80 |
24 |
18 |
80 |
210 |
|
WSJ-32200 |
32 |
27.5 |
51 |
200 |
80 |
30 |
18 |
80 |
320 |
|
WSJ-42200 |
36 |
32 |
59 |
200 |
90 |
36 |
18 |
80 |
420 |

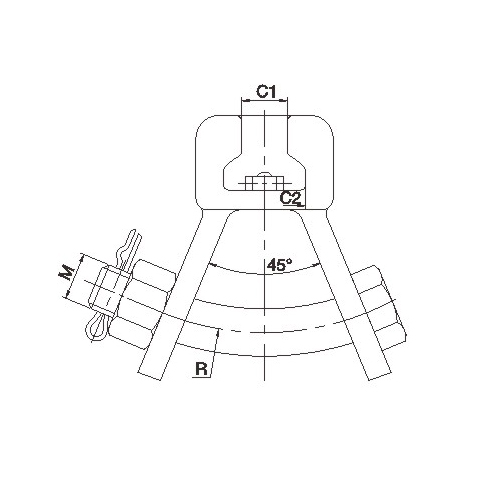

State Network Model |
Main Dimensions |
Nominal Failure Load |
Weight |
||||
C1 |
c1 |
R |
M |
||||
WSY-21 |
23.0 |
42.5 |
100 |
27 |
210 |
4.1 |
|
WSY-30 |
27.5 |
51.0 |
100 |
30 |
300 |
4.9 |
