NUT Adjustable、NU not Adjustable Wedge Pulling Line Clamp

Short Description:


Product Detail

Product Tags

Description:

NUT type wedge type pulling line clamp (adjustable type) is used for installation of galvanized iron wire strands as well as fixture of overhead ground wire & guy grip on guy-strained tower; it makes use of arm force subjected to the wedge for fastening the galvanized iron wire strands into the clamp.

Malleable Iron Type

Aluminum Alloy Type

Applicable Steel Wire

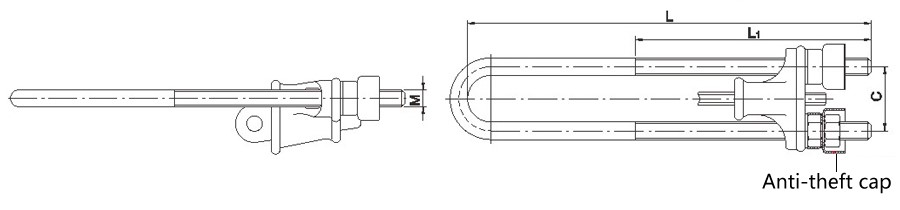

Main Dimensions
(mm)

Nominal Failure Load
(kN)

Weight
(kg)

Selection of Anti-Theft Cap

Anti-Theft Cap Wrench

Cutting Surface
(mm2)

Outside Diameter
(mm)

M

L

L1

C

NUT-1

NUT-1L

25~35

Φ6.6~7.8

16

350

200

56

45

2.10

FDM-1#

FDB-1#

NUT-2

NUT-2L

50~70

Φ9.0~11.0

18

430

250

62

88

3.20

FDM-2#

NUT-3

NUT-3L

100~125

Φ13.0~14.0

22

500

300

74

143

5.40

FDM-3#

FDB-2#

NUT-4

NUT-4L

135~150

Φ15.0~16.0

24

580

350

82

164

7.20

FDM-4#

NU-1

NU-1L

25~35

Φ6.6~7.8

16

290

70

56

143

1.92

FDM-1#

FDB-1#

NU-2

NU-2L

50~70

Φ9.0~11.0

18

290

70

62

164

2.61

FDM-2#

NU-3

NU-3L

100~125

Φ13.0~14.0

22

290

60

74

143

4.21

FDM-3#

FDB-2#

NU-4

NU-4L

135~150

Φ15.0~16.0

24

340

70

82

164

7.27

FDM-4#

NUT Adjustable、NU not Adjustable Wedge Pulling Line Clamp

When using an anti-theft cap, the installation method is as follows:

1. Tighten the nut with an ordinary wrench and put on the matching anti-theft cap

2. Put on the matching anti-theft sleeve and screw the nut with a special anti-theft wrench
