JTKG Series Low Voltage Branch Clamp

Short Description:


Product Detail

Product Tags

Description:

It is suitable for non-bearing T-branch connection in distribution lines, especially for non-bearing connection and aluminum-copper transition connection of the incoming bus and the branch branch.

Features:

a. The busbar side adopts a span structure, and the gland and adjustment pad are designed by computer, which is accurate in coordination, wide in scope and reliable in contact.

b. There are various connection methods such as bolt structure and enzyme diameter plate structure on the branch side.

c. All screws adopt a columnar anti-twist structure, which does not turn during installation and is more convenient to use.

d. Tongshao adopts friction welding process, forging and forming, and the quality is stable and reliable.

e. It is more safe and reliable when used in conjunction with the corresponding insulation cover.

Type

Nominal cutting surface for conductors
(mm²)

Type

Thread

Branch

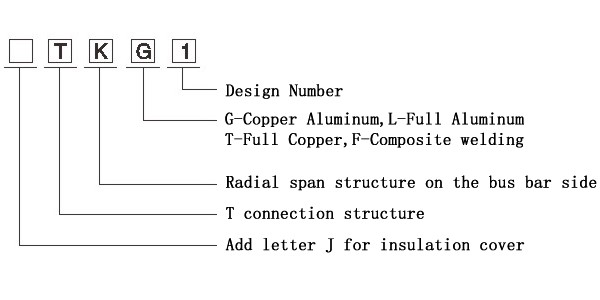

asdf

TKG1

25 ~ 150

4 ~ 25 x 2

Copper-aluminium double Outgoing line

TKG7

25 ~ 150

4 ~ 25

Copper-aluminium single Outgoing line

TKG6

25 ~ 150

4 ~ 25

Copper – aluminum single Outgoing cover widening

TKG2

25 ~ 150

4 ~ 25 x 2

Copper-aluminium double-span Outgoing line

TKG4

10 ~ 50

1.5 ~ 16

Copper-aluminium single Outgoing line

TKG1F

25 ~ 150

4 ~ 25 x 2

Copper-aluminium double Outgoing line

TKG4F

10 ~ 50

1.5 ~ 16

Copper-aluminium single Outgoing line
